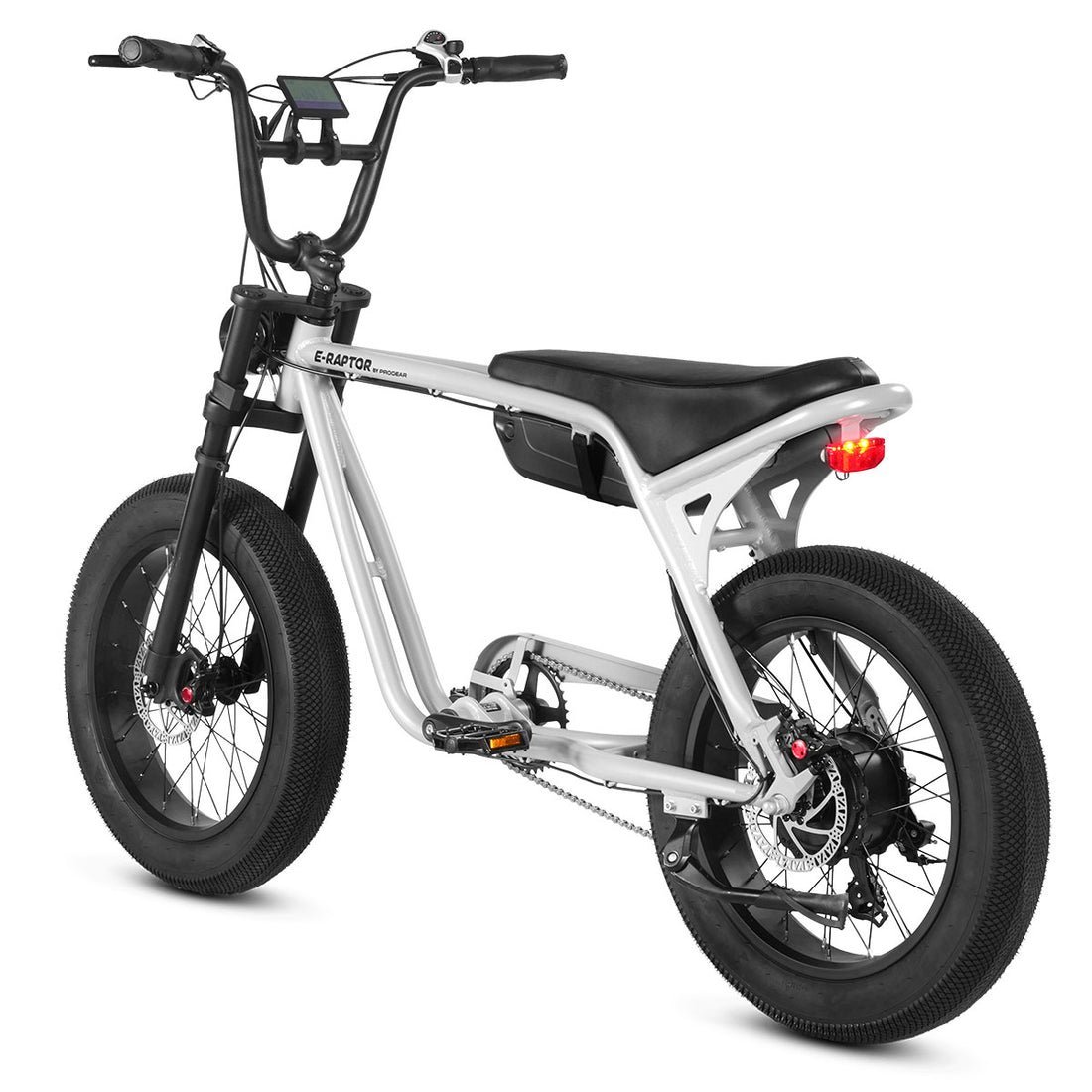

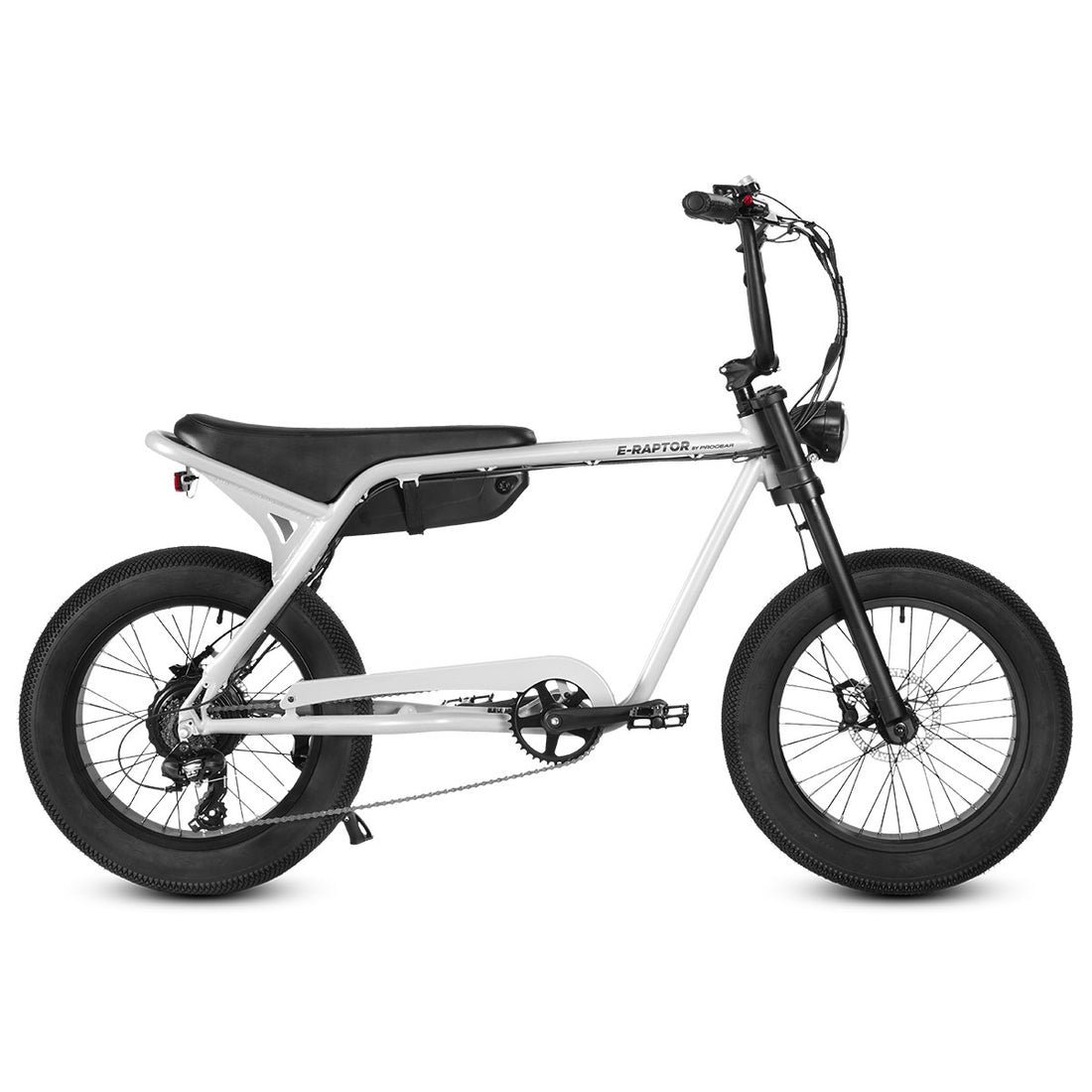

Name: Progear E-Raptor 20" Electric Street Bike
Brand: Progear Bikes
SKU: cvnmp
Availability: InStock

Specification

Technical Specifications

Frame	Alloy 20″
Fork	Steel 20″
Handlebar	Progear Alloy Width 680mm
Grips	135mm
Stem	Progear Alloy 50mm
Saddle	Integrated
Pedals	Progear Alloy
Shifter	Shimano TX50 7-Speed
Rear Derailleur	Shimano Tourney 7-Speed

Brakes	Hydraulic Disc Brake – 160mm Rotor
Freewheel	Shimano 7-Speed, 14-28T
Chainwheel & Cranks	38T – 170mm Crank
Chain	KMC 7s 140L
Tyre	20″ x 4.0
Rim	Single Wall 20″
Bell	Included
Bag	Included
Kickstand	Included

Electrical Components

Battery	EverDrive 48V 615Wh
Display	EverDrive LCD Speed Limit 25km
Charger	48V 2A

Motor	EverDrive 48V 500W 60nm
F Light	Integrated
R Light	Integrated

Electric Bike Battery Information

The travel distance after a full charge on this e-Bike can vary from 30km to 70km.
There are several factors that will affect how long the battery will last after a full charge.

Factors include:
Level of Pedal Assistance – Higher level of assistance will use more battery charge.
Weight of Rider & Luggage – More weight may require more power from the battery.
Terrain & Weather Conditions – Terrain & wind may cause drag, and will require more power to maintain speed.
Tyre Conditions – Incorrect tyre pressure may create more rolling resistance.
Traffic/Route Conditions – Stop/Start cycling may use more power to accelerate up to appropriate travelling speeds.

Electric Bike Legality

This e-bike is limited to 25 km/h for legal use on public roads. A throttle kit is available for off-road use only, enabling throttle control and modifying or removing speed restrictions. Check local laws before use or modification.
